Futai HongKong Co.,Ltd

SMC Female Connector RG174 Cable

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Quick Information

  • Brand Name: FUTAI
  • Place of Origin: China
  • Model Number : FT-Connector-023
  • Application : RF
  • Pins : 1P
  • Material : gold
  • Gender : male
  • Product name : female
  • Sample : SMC connector
  • Website : welcome ask sample for testing

Description

 Excellent quality SMC Female Connector for RG174 Cable





Specifications:



SMC Female Crimp Jack Connector

Model

FT-Connector-023

Major Technical Characteristics

Type

 SMC-C-KY1.5-023

Impedance

50Ω

Frequency Range

DC~6GHz

Center conductor retention force

≥0.28N

Insertion loss

≤0.24dB/6GHz

Insulation resistance

≥5000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.30/3GHz

Right Angle    ≤1.45/3GHz

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Socket contact

Beryllium or tin brass

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber



We can provide other materials and plating specifications according to customer's requirements.







Pictures

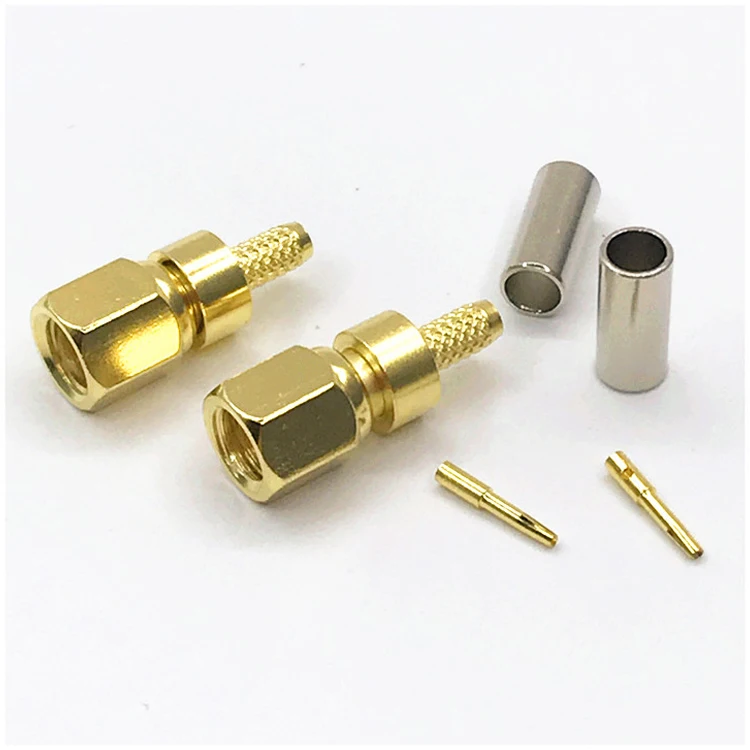

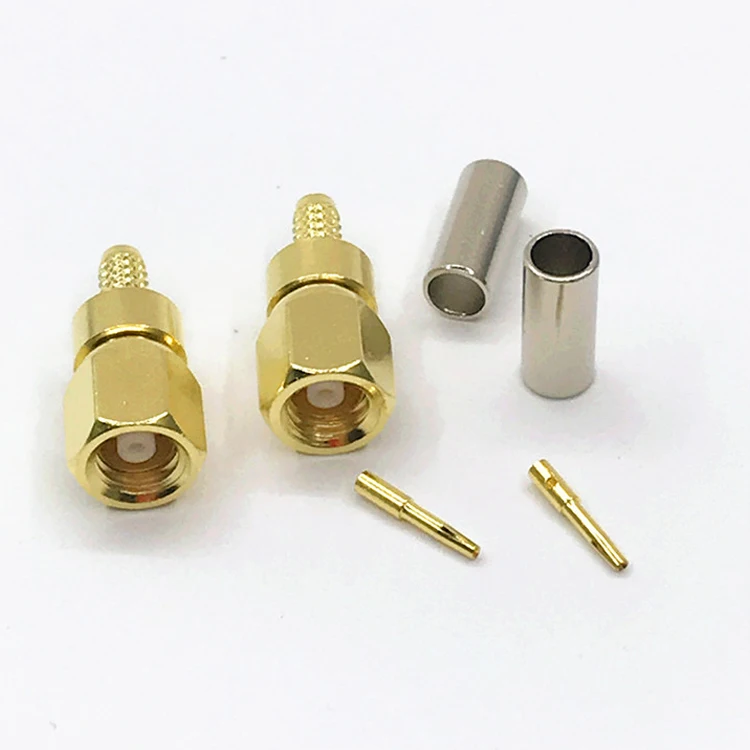

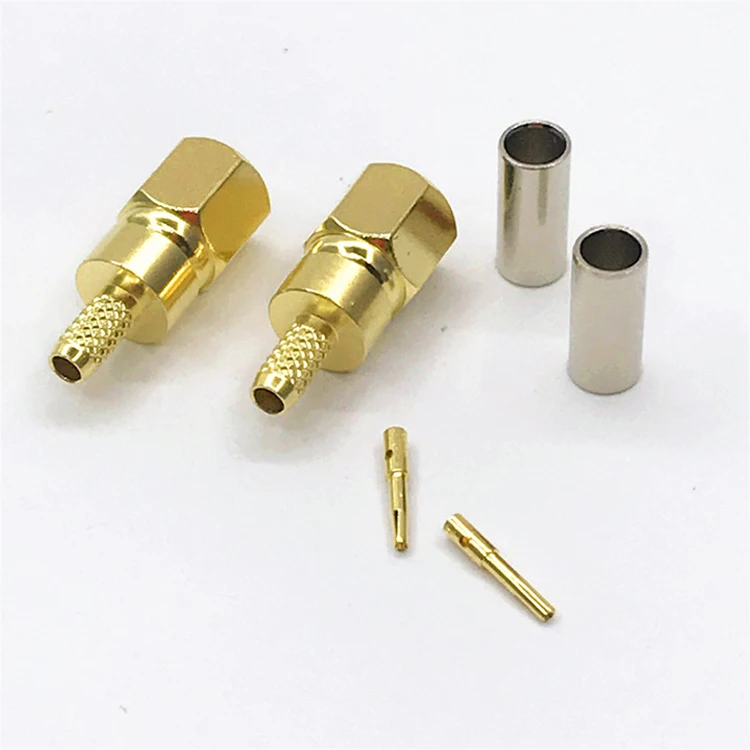

SMC Female Connector  RG174 CableSMC Female Connector  RG174 CableSMC Female Connector  RG174 CableSMC Female Connector  RG174 Cable







 About Us



     Futai HongKong Co., Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas. Our subsidiary –Jinrei Communication co., ltd is located in are three catagories:, RF Connector , Cable Assembly and Antenna.
         Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC ,N, and so on).
         Cable assemblies are includGaoqiao, Danyang City ,Jiangsu.
         Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
         Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
The corporation has passsed ISO9001-2000 certification and ISO14001 in 2004.All of our products and raw materials are in line with the EU ROHS certification.
Our Professional R&D staff develop and research latest designs to meet global market.
Company purpose: Technological Innovation, Pragmatism, Customer Satisfaction.
Quality principal: Continuous Improvement, Become the Best.
We are looking forward to establishing business relations with clients from all over the world.











Packing & Delivery



 SMC Female Connector  RG174 Cable







Exhibition

SMC Female Connector  RG174 Cable



FAQ



Q1:Where can i get the product and price information?

A1:You can send us inquiry e-mail or directly contact us,when we receive your e-mail well contact you.



Q2:How long Can i get the sample?

A2:That is depends on your products, within 3-7 days is required generally.



Q3:How to ship the goods?

A3:We ship the products by courier company or if you have DHL,UPS,FedEx account,we can use it to ship sample.



Q4:What shall we do if we do not have drawings?

A4:Please send your sample to our factory,then we can copy or provide you better solutions, please send us pictures or drafts with dimensions(Length,Hight,Width), CAD or 3D file will be made for you if placed order.



Q5:Will my drawings be safe after sending to you?

A5:Yes, we will keep them well and not release to the third party without your permission.



Q6:How do you handle after-sales service?

A6:If you have workers who know how to repair,please consult our technical support. If there is no engineer, please return the goods,we can repair them for you.



Q7:What kinds of information you need for quote?

A7:Kindly please provide the product drawing in PDF,and will be better you can provide in step or IGSMOQ.







Please contact us with any questions!



Price

  • Delivery Port : foshan

Packaging & Delivery

  • Packing :100pcsbag
  • Delivery Lead Time : 7 days
  • Supply Ability : 100000 pieces/mouth

Product Image

  • SMC Female Connector RG174 Cable  image
